Humidifier
AC-B
Two Gauge Type - VSC L-shaped Series ____________________________________
|
|
Flowmeter is circle gauge type instead of tube type, user can
read flow value easier.
Use UL certified gauge.
Can be applied for various types of O2 cylinder, with high
quality and low repair rate.
The flow output accuracy is within ±10% which meets medical
standard.
With GMP, ISO13485 & CE certificates.
Material: Pure brass body with chrome.
Output pressure rate is variant while adjusting flow.
Flow Rate: 0~15 lpm
Inlet Position: Side entry
Various types of inlet connection can be selected.
Accessories: humidifier & cannula
|

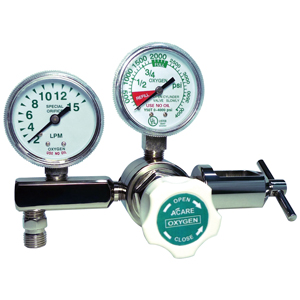

VSC-302
CGA870 Inlet Side entry
|
|
|
Oxygen Regulator ______________________________________________________
Inlet Connection _____________________________________________________
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Japanese
Inlet(Hand-
tight Wheel)
|
|
|
|
|
|
|
|
|
|
|
|
|
VSC L-shaped series - Model & Specification ________________________________________________
Acare Technology Co., Ltd.
